ml610xxx

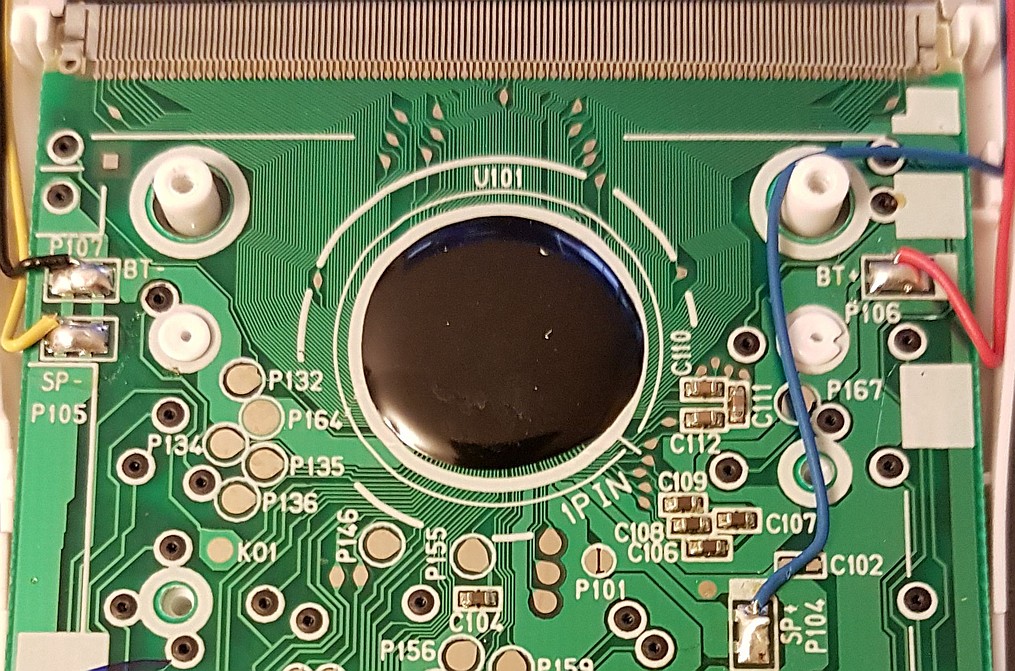

ML610xxx Pinout
Found in ES_PLUS series
| PIN | NAME |
|---|---|
| 1 | to C110 |
| 2 | to C111 |
| 3 | to C111 |
| 4 | -LCD- |
| 5 | -LCD- |
| 6 | -LCD- |
| 7 | -LCD- |
| 8 | -LCD- |
| 9 | -LCD- |
| 10 | -LCD- |
| 11 | -LCD- |
| 12 | -LCD- |
| 13 | -LCD- |
| 14 | -LCD- |
| 15 | -LCD- |
| 16 | -LCD- |
| 17 | -LCD- |
| 18 | -LCD- |
| 19 | -LCD- |
| 20 | -LCD- |
| 21 | -LCD- |
| 22 | -LCD- |
| 23 | -LCD- |
| 24 | -LCD- |
| 25 | -LCD- |
| 26 | -LCD- |
| 27 | -LCD- |
| 28 | -LCD- |
| 29 | -LCD- |
| 30 | -LCD- |
| 31 | -LCD- |
| 32 | -LCD- |
| 33 | -LCD- |
| 34 | -LCD- |
| 35 | -LCD- |
| 36 | -LCD- |
| 37 | -LCD- |
| 38 | -LCD- |
| 39 | -LCD- |
| 40 | -LCD- |
| 41 | -LCD- |
| 42 | -LCD- |
| 43 | -LCD- |
| 44 | -LCD- |
| 45 | -LCD- |
| 46 | -LCD- |
| 47 | -LCD- |
| 48 | -LCD- |
| 49 | -LCD- |
| 50 | -LCD- |
| 51 | -LCD- |
| 52 | -LCD- |
| 53 | -LCD- |
| 54 | -LCD- |
| 55 | -LCD- |
| 56 | -LCD- |
| 57 | -LCD- |
| 58 | -LCD- |
| 59 | -LCD- |
| 60 | -LCD- |
| 61 | -LCD- |
| 62 | -LCD- |
| 63 | -LCD- |
| 64 | -LCD- |
| 65 | -LCD- |
| 66 | -LCD- |
| 67 | -LCD- |
| 68 | -LCD- |
| 69 | -LCD- |
| 70 | -LCD- |
| 71 | -LCD- |
| 72 | -LCD- |
| 73 | -LCD- |
| 74 | -LCD- |
| 75 | -LCD- |
| 76 | -LCD- |
| 77 | -LCD- |
| 78 | -LCD- |
| 79 | -LCD- |
| 80 | -LCD- |
| 81 | -LCD- |
| 82 | -LCD- |
| 83 | -LCD- |
| 84 | -LCD- |
| 85 | -LCD- |
| 86 | -LCD- |
| 87 | -LCD- |
| 88 | -LCD- |
| 89 | -LCD- |
| 90 | -LCD- |
| 91 | -LCD- |
| 92 | -LCD- |
| 93 | -LCD- |
| 94 | -LCD- |
| 95 | -LCD- |
| 96 | -LCD- |
| 97 | -LCD- |
| 98 | -LCD- |
| 99 | -LCD- |
| 100 | -LCD- |
| 101 | -LCD- |
| 102 | -LCD- |
| 103 | -LCD- |
| 104 | -LCD- |
| 105 | -LCD- |
| 106 | -LCD- |
| 107 | -LCD- |
| 108 | -LCD- |
| 109 | -LCD- |
| 110 | -LCD- |
| 111 | -LCD- |
| 112 | -LCD- |
| 113 | -LCD- |
| 114 | -LCD- |
| 115 | -LCD- |
| 116 | -LCD- |
| 117 | -LCD- |
| 118 | -LCD- |
| 119 | -LCD- |
| 120 | -LCD- |
| 121 | -LCD- |
| 122 | -LCD- |
| 123 | -LCD- |
| 124 | -LCD- |
| 125 | -LCD- |
| 126 | -LCD- |
| 127 | -LCD- |
| 128 | -LCD- |
| 129 | -LCD- |
| 130 | -LCD- |
| 131 | -LCD- |
| 132 | RESETB / P132 |
| 133 | Vss / 164* / P164 |
| 134 | ? / P134 |
| 135 | ? / P135 |
| 136 | ? / P136 |
| 137 | KO1 |
| 138 | KO2 |
| 139 | KO3 |
| 140 | KO4 |
| 141 | KO5 |
| 142 | KO6 |
| 143 | KO7 |
| 144 | P0 |
| 145 | P1 |
| 146 | ? / P146 |
| 147 | KI8 |
| 148 | KI7 |
| 149 | KI6 |
| 150 | KI5 |
| 151 | KI4 |
| 152 | KI3 |
| 153 | KI2 |
| 154 | KI1 |
| 155 | VDDL / P155 |
| 156 | ? / P156 |
| 157 | ? / P157 |
| 158 | ? / P158 |
| 159 | ? / P159 |
| 160 | Vss/GND |
| 161 | T101? |
| 162 | T102? |
| 163 | T103? |
| 164 | Vss/GND |
| 165 | SP+ (Solar) |
| 166 | Vdd |
| 167 | to C106 |
| 168 | to C107 |
| 169 | to C108 |
| 170 | to C109 |
| 171 | to C112 |
| 172 | to C112 |
